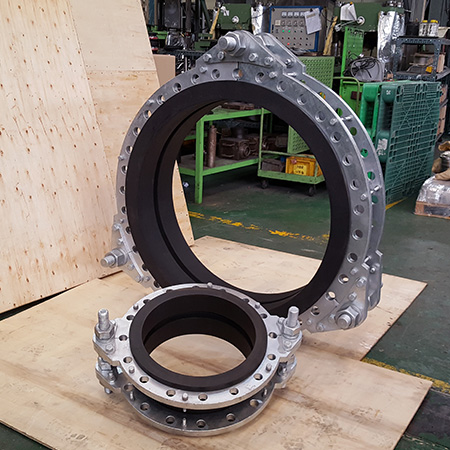

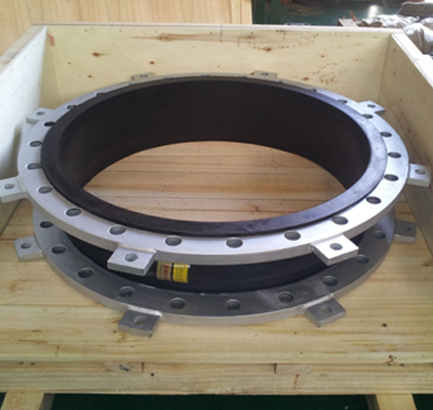

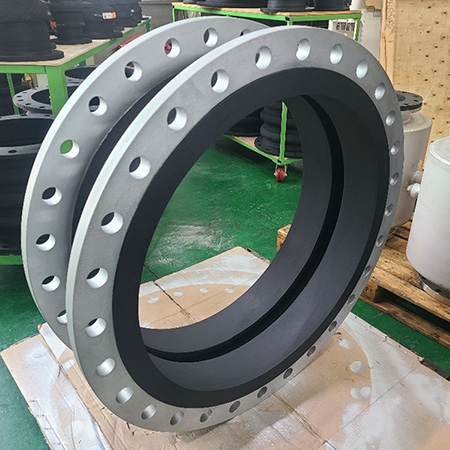

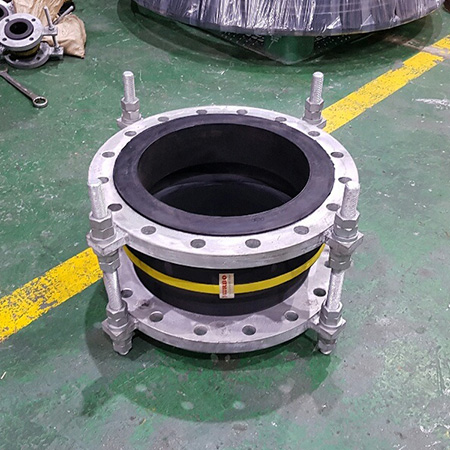

Series 30FF, Wide Arch Type with Floating Metal Flange
Unique arrangement of spring steel wire and combined construction of
bias/radial tire cord increases pressure/vacuum capability
Superior reliability and durability:
With quality materials and optimum selection of construction and
professional workmanship allow Kurbo 30FF to guarantee longer service life.
Wide variety of elastomers:
As a standard elastomers, natural rubber, neoprene, nitrile, butyl,
EPDM, CSM elastomers are available. As a special, food grade white rubber, flame resistance rubber,
Viton and Teflon available.
Wide spectrum of fabric and metal reinforcements:
Standard fabric is high tensile polyester tire
cord. Other materials like nylon, Kevlar, Nomex are available. Different grade of corrosion resistant steel
wire and annular ring are used in carcass for pressure/vacuum bearing reinforcement layers.

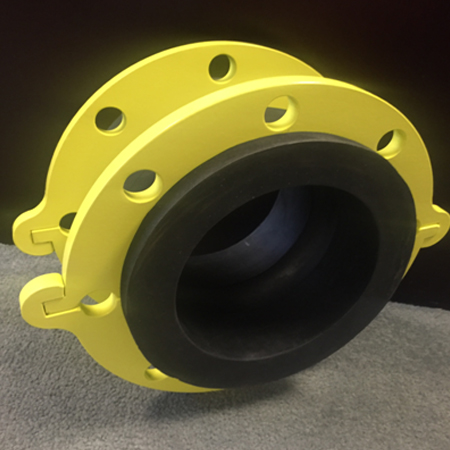

The flanges rotate freely on the rubber bellows compensating for mating flange
misalignment -Simple and quick installation .
No retaining ring or control rod plate(gusset plate) required – Easy handling and quick installation.
